LMF Linear Bushing

LMF Linear Bushing

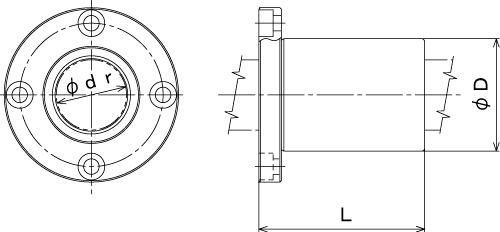

Drawing

Datasheet

Model No.				Main dimensions
	Inscribed bore diameter			Outer diameter		Length		Flange	diameter
	dr	Tolerance		D	Tolerance	L	Tolerance	D₁	Tolerance
		Precision	High		Precision/High
	mm	mm	mm	mm	mm	mm	mm	mm	mm
LMF 6	6	—	—	12	0	19	0	28	0
					–0.011				–0.2
LMF 8S	8	—	—	15	0	17	0	32	0
					–0.011				–0.2
LMF 8	8	—	—	15	0	24	0	32	0
					–0.011				–0.2
LMF 10	10	—	—	19	0	29	0	39	0
					–0.013				–0.2
LMF 12	12	—	—	21	0	30	0	42	0
					–0.013				–0.2
LMF 13	13	—	—	23	0	32	0	43	0
					–0.013				–0.2
LMF 16	16	—	—	28	0	37	0	48	0
					–0.013				–0.2
LMF 20	20	—	—	32	0	42	0	54	0
					–0.016				–0.2
LMF 25	25	—	—	40	0	59	0	62	0
					–0.016				–0.2
LMF 30	30	—	—	45	0	64	0	74	0
					–0.016				–0.2
LMF 35	35	—	—	52	0	70	0	82	0
					–0.019				–0.2
LMF 40	40	—	—	60	0	80	0	96	0
					–0.019				–0.3
LMF 50	50	—	—	80	0	100	0	116	0
					–0.019				–0.3
LMF 60	60	—	—	90	0 -0.022	110	0 -0.3	134	0 -0.3
